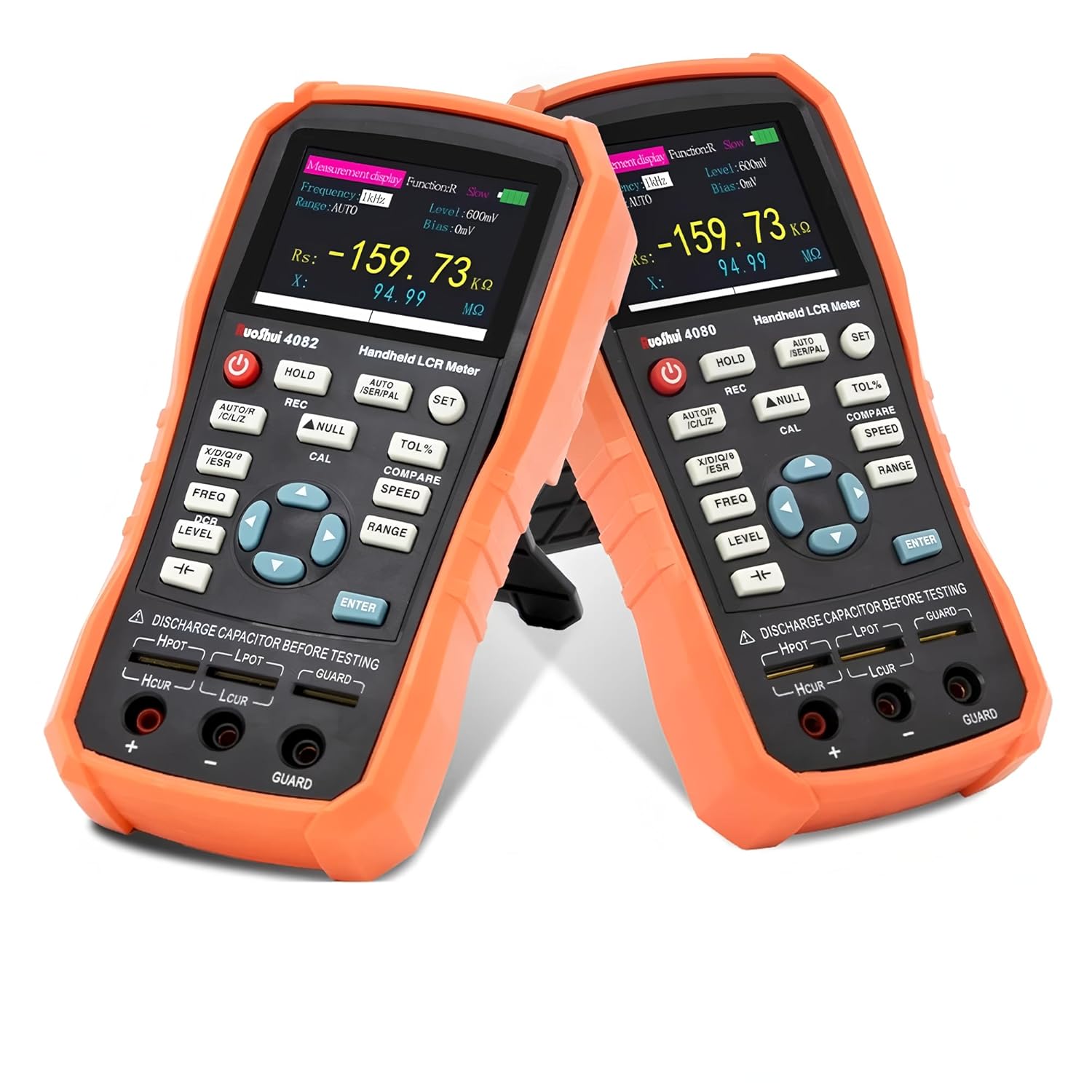

4080/4082 Hand held 5 digits Manual Auto Range LCR meter 20Mohm Resistance 2000H Inductance 20mF Capacitance 5V lithium batter(RUOSHUI 4080)

Product Description RUOSHUI 4080 and 4082 Multi-function Handheld LCR Digital Bridge Meter High Precision Capacitance Inductance Resistance Meter Handheld Bridge Product description RUOSHUI 4080/4082 handheld bridge features 2.8” TFT display screen, easy key operation and USB communication. Its high capacity lithium battery ensures long run. It can measure comprehensive parameters, and supports for screening and deviation measurement, with continuously adjustable output frequency. The basic accuracy reaches 0.2%/0.3%. 4080 Testing frequency 100Hz, 120Hz, 1KHz, 10KHz, 40kHz, 100KHz Basic accuracy 0.3% 4082 Testing frequency 100Hz-100KHz Continuously adjustable step of 1 Hz Basic accuracy 0.2% Product features Measurable frequency up to 100k Hz, continuously adjustable at a step of 1 Hz. Measurement of DC resistance and electrolytic capacitor supported Internal bias voltage output (0 mV-500 mV) Automatic identification of measured component Support for screening and deviation measurement 2.8” TFT display screen, a 4 1/2 digit display USB communication interface Power supply by high capacity lithium battery Support for SCPI protocol System configuration available for setting of language, buzzer and display brightness Basic measuring accuracy 0.2%, adjustable measuring speed Manual and automatic range Open circuit and short circuit calibration Multiple testing ports.

• Handheld LCR measuring the parameters of inductors, capacitors, resistors and other components
• Its highest measurement frequency is 100kHz
• It can automatically select the appropriate measurement parameters
• The operation is simple, and users can see the test frequency, parameters, and speed
• The buzzer, automatic power off and languages can be set on the configuration menu
